SEAMLESS BUTT WELDING FITTINGS -


Standard Wall and Extra Strong Wall (A) -

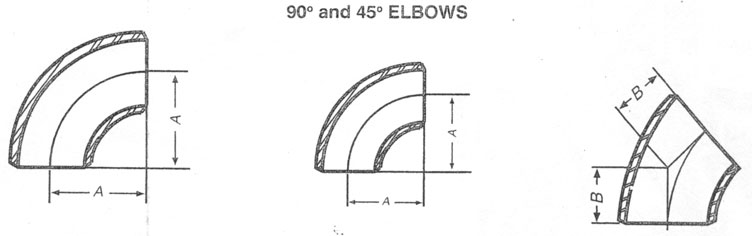

SEAMLESS BUTT WELDING FITTINGS

ASA B16.9 MSS SP - 48 ASA B16.28

Nominal
Pipe
Size		 900 Elbows 450 Elbows
Long Radius Short Radious Long Radius
Center to End
A		 Approx. Weight
(lbs)		 Center to End
A		 Approx. Weight
(lbs)		 Radius
A		 Center
to End
B		 Approx. Weight (lbs)
STD XS STD XS STD XS
1/2
3/4
1
1 1/4
1 1/2		 1 1/2
1 1/8
1 1/2
1 7/8
2 1/4		 .17
.17
.34
.58
.83		 .22
.22
.43
.75
1.06		 -
-
1
11/4
11/2
 -
-
.23
.38
.55		 -
-
-
-
.72

1 1/2
1 1/8
1 1/2
1 7/8
2 1/4

 5 1/8
7/16
7/8
1
1 1/8		 .09
.09
.24
.37
.50
.11
.11
.30
.48
.65
2
2 1/2
3
3 1/2
4		 3
3 3/4
4 1/2
5 1/4
6		 1.49
2.92
4.58
6.43
8.70		 2.00
3.82
6.12
8.72
11.9		 2
21/2
3
31/2
4		 .99
1.93
3.04
4.26
5.77		 1.33
2.51
4.04
5.76
7.89		 3
3 3/4
4 1/2
5 1/4
6		 1 3/8
1 3/4
2
2 1/4
2 1/2		 .82
1.64
2.43
3.29
4.31

1.09
2.10
3.23
4.42
5.80

5
6
8
10
12		 7 1/2
9
12
15
18		 14.7
22.9
46.0
81.5
119		 20.6
34.1
69.1
109
157		 5
6
8
10
12		 9.75
15.2
30.5
54.0
79.5		 13.7
22.6
45.6
72.5
104		 7 1/2
9
12
15
18		 3 1/8
3 3/4
5
6 1/4
7 1/2		 7.30
11.3
22.8
40.4
59.5		 10.2
16.7
34.0
53.9
78.3
14
16
18
20
22		 21
24
27
30
33		 154
201
256
317
385		 202
265
338
419
508		 14
16
18
20
-		 102
135
171
212
-		 135
177
225
278
-		 21
24
27
30
33		 8 3/4
10
11 1/4
12 1/2
13 1/2		 76.5
100
128
158
192		 100
132
168
208
253
24
26
30
36		 36
39
45
54		 485
539
720
1040		 606
713
953
1380		 24
-
30
36		 305

480
692		 404
-
634
913		 36
39
45
54		 15
16
18 1/2
22 1/4		 229
269
358
518		 312
355
475
686
