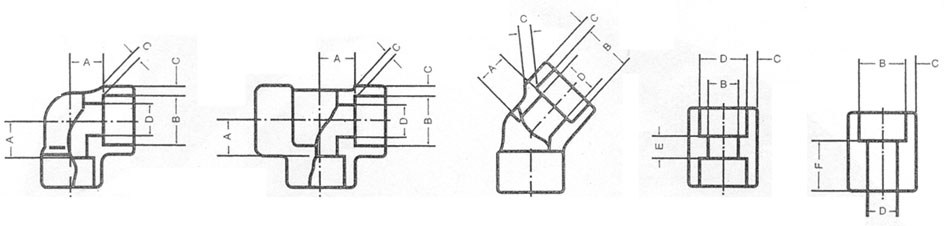

FORGED SOCKET WELDING FITTINGS -
| NOM. PIPE SIZE |
SOCK. BORE DIAM. B |
DEPTH OF SOCK. MIN |
WALL THICKNESS MINIMUM |
BORE DIAMETER OF FITTIG D |
CENTER TO BOTTOM OF SOCKET | LAYING LENGTHS | APPROXIMATE WEIGHT IN POUNS | |||||||||||||||
| 3000 SOCK. C |
6000 SOCK. C |
900 ELBOW, TEES, COROSSES A |
450 ELBOW A |
COUP- INGS |
HALF COUP- INGS |
ELBOWS | TEES | COUPLINGS | HALF COUPLINGS |
|||||||||||||
| 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | E | F | 900 3000 |
900 6000 |
450 3000 |
450 6000 |
3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |||||
1/8 |
.420 .430 |
3/8 | .125 | .135 | .254 .284 |
.141 .171 |
7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .13 | 0.04 | ||||||||
| 1/4 | .690 .700 |
3/8 | .130 | .158 | .349 .379 |
.235 .265 |
7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .13 | .13 | 0.25 | .13 | 0.05 | |||||
| 3/8 | .554 .565 |
3/8 | .138 | .172 | .478 .508 |
.344 .374 |
17/32 | 5/8 | 7/16 | 7/16 | 1/4 | 11/16 | .25 | .19 | 0.31 | .19 | 0.06 | |||||
| 1/2 | .855 .865 |
3/8 | .161 | .204 | .607 .637 |
.451 .481 |
5/8 | 3/4 | 1/2 | 1/2 | 3/8 | 7/8 | .50 | 9.4 | .44 | .88 | 0.69 | 1.38 | .25 | .38 | 0.09 | 0.12 |
| 3/4 | 1.065 1.075 |
1/2 | .168 | .238 | .809 .839 |
.599 .629 |
3/4 | 7/8 | 9/16 | 9/16 | 3/8 | 15/16 | .69 | 1.44 | .50 | 1.31 | 0.88 | 2.00 | .38 | .56 | 0.13 | 0.20 |
| 1 | 1.330 1.340 |
1/2 | .196 | .273 | 1.034 1.064 |
.800 .830 |
7/8 | 1 1/16 | 11/16 | 11/16 | 1/2 | 1 1/8 | 1.31 | 2.25 | .88 | 2.06 | 1.44 | 3.31 | .75 | 1.00 | 0.2 | 0.23 |
| 1 1/4 | 1.675 1.685 |
1/2 | .208 | .273 | 1.365 1.395 |
1.145 1.175 |
1 1/16 | 1 1/4 | 13/16 | 13/16 | 1/2 | 1 3/16 | 1.63 | 3.19 | 1.31 | 2.50 | 2.13 | 3.75 | 1.13 | 1.44 | 0.24 | 0.31 |
| 1 1/2 | 1.915 1.925 |
1/2 | .218 | .307 | 1.595 1.625 |
1.323 1.353 |
1 1/4 | 1 1/2 | 1 | 1 | 1/2 | 1 1/4 | 2.13 | 5.25 | 1.75 | 4.31 | 2.44 | 6.50 | 1.31 | 2.00 | 0.32 | 0.52 |
| 2 | 2.406 2.416 |
5/8 | .238 | .374 | 2.052 2.082 |
1.674 1.704 |
1 1/2 | 1 5/8 | 1 | 1 1/8 | 3/4 | 1 5/8 | 3.56 | 6.69 | 2.88 | 4.81 | 4.44 | 7.88 | 2.00 | 3.88 | 0.52 | 0.86 |
| 2 1/2 | 2.906 2.921 |
5/8 | .301 | 2.439 2.499 |
1 5/8 | 2 1/4 | 1 1/8 | 1 1/4 | 3/4 | 1 11/16 | 6.38 | 11.88 | 7.38 | 9.63 | 8.88 | 16.63 | 3.25 | 5.50 | 0.86 | 1.09 | ||
| 3 | 3.535 3.550 |
5/8 | .327 | 3.038 3.098 |
2 1/4 | 1 1/4 | 3/4 | 1 3/4 | 10.88 | 19.25 | 10.50 | 14.25 | 13.69 | 23.50 | 4.56 | 6.63 | 1.09 | 2.09 | ||||
Forged Socket Welding Fittings USAS B16.11
| NOMINAL PIPE SIZE |
ALL FITTING | ELBOWS TEES | COUPLING | HALF COUPLINGS | |||||
| INSIDE DIAMETER OF SOCKET |
SOCKET WALL THICKNESS |
BORE DIAMETER OF FITTING | FITTING DIAMETER OF FITTING | CONCEN - TRIC OF FITTNG | COINCI - DENCE OF AXES | CENTER TO BOTTOM OF SOCKETS | BOTTOM TO BOTTOM OF SOCKETS | BOTTOM OF SOCKET TO OPPOSITE | |
| 1/8 - 1/4 | +.010" -.000" |
NOT LESS THAN 125% OF NOMINAL PIPE THICKNESS THAN 1/8" |
±.0.15" | NOT LESS THAN NOMINAL PIPE WALL THICKNESS |
MAXIMUM VARIATION IN ALIGNMENT OF SOCKET AND FITTING BORE FOR 1/6" IN 12" |
±0.03" | ±0.06" | ±0.03" | |
| 3/8 - 3/4 | +.010" -.000" |
±.0.15" | ±0.06" | ±0.06" | ±0.06" | ||||
| 1 - 2 | +.010 -.000" |
±.0.15" | ±0.08" | ±0.08" | ±0.08" | ||||
| 2 1/2 - 3 | +.015" -.000" |
±.030" | ±0.10" | ±0.10" | ±0.10" | ||||
|
|
