CAPS EXTRA STRONG -

CAPS EXTRA STRONG

UNIQUE CORPORATION
USAS B16.9      ASTMA 234

NOMINAL
PIPE

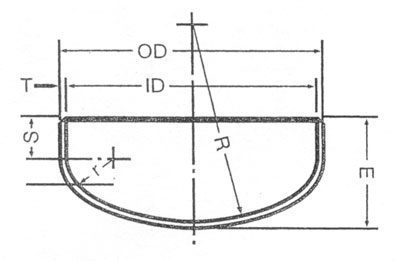

SIZE		 OUTSIDE DIAMETER.
O.D.		 INSIDE DIAMETER
I.D.		 WALL
THICKNESS
T 		LENGTH
  E 		TANGENT
  S 		DISH
RADIUS
R 		KNUCKLE RADIUS
Y 		PIPE
SCHEDULE NUMBERS		 APPROX.
WEIGHT
IN POUNDS
1/2 .840 .622 .109 1 .74 .54 .10 40 .07
3/4 1.050 .824 .113 1 1/4 0.93 .72 .14 40 .13
1 1.315 1.049 .113 1 1/2 1.10 .92 .17 40 .23
1 1/4 1.660 1.380 .145 1 1/2 1.02 1.35 .23 40 .31
1 1/2 1.900 1.610 .145 1 1/2 .95 1.41 .27 40 .37
2 2.375 2.067 .154 1 1/2 .83 1.81 .34 40 .51
2 1/2 2.875 2.469 .203 1 1/2 .68 2.15 .41 40 .81
3 3.500 3.068 .216 2 1.02 2.69 .51 40 1.41
3 1/2 4.000 3.548 .226 2 1/2 1.39 3.11 .59 40 2.12
4 4.500 4.026 .237 2 1/2 1.26 3.52 .67 40 2.55
5 5.563 5.047 .258 3 1.48 4.42 .84 40 4.20
6 6.625 6.065 .28 3 1/2 1.7 5.31 1.01 40 6.41
8 8.625 7.981 .322 4 1.68 6.98 1.33 40 11.30
10 10.750 10.020 .365 5 2.13 8.77 1.67 40 20.00
12 12.750 12.000 .375 6 2.62 10.50 2.00 STD 29.50
14 14.000 13.250 .375 6 1/2 2.81 11.60 2.21 30 35.30
16 16.000 15.250 .375 7 2.81 13.34 2.54 30 44.30
18 18.000 17.250 .375 8 3.31 15.08 2.88 STD 57.10
20 20.000 19.250 .375 9 3.81 16.84 3.21 20 71.70
22 22.000 21.250 .375 10 4.31 18.60 3.54 STD 86.50
24 24.000 23.250 .375 10 1/2 4.31 20.34 3.88 20 102
26 26.000 25.250 .375 10 1/2 3.81 22.10 4.21 STD 110
30 30.000 29.250 .375 10 1/2 2.81 25.60 4.88 STD 125
34 34.000 33.250 .375 10 1/2 1.81 29.10 5.54 STD 160
36 36.000 35.250 .375 10 1/2 1.31 30.85 5.88 STD 175
42 42.000 41.250 .375 12 1.31 36.10 6.88 STD 230
